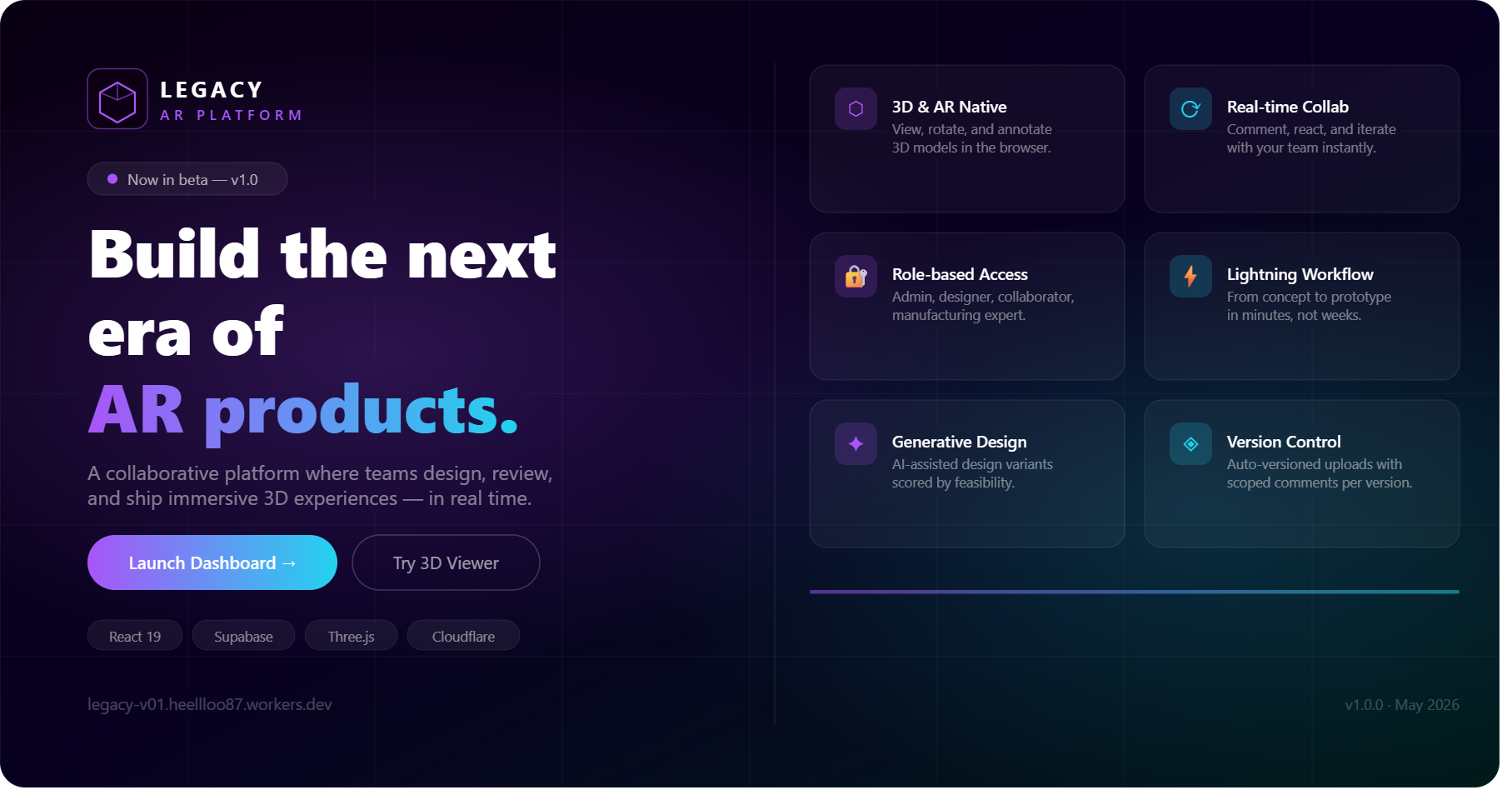

Legacy AR is a web-based collaborative platform built for design and engineering teams to upload, review, and iterate on 3D models in real time. Version 1 ships a complete end-to-end flow — from project creation to 3D model viewing, live commenting, team collaboration, and role-based access control.
- Create projects with cover images and 3D design file uploads
- Track progress (0–100%) and status (
draft → in-progress → review → done) - Public, team, and private visibility controls
- Auto-versioning on every design upload (
v1 → v2 → v3 ...)
- Real-time GLB/GLTF model rendering powered by Three.js + React Three Fiber
- Split-panel layout — project picker on the left, live 3D canvas on the right
- Orbit controls with auto-rotate, zoom, pan
- Wireframe toggle, environment lighting, contact shadows
- Drag & drop local file loading
- Version-scoped comments — leave feedback tied to a specific design version
- Live presence tracking — see who's online on a project
- Real-time notifications — get alerted on comments and project updates
- Team projects — share work across your entire organization
| Role | Access |
|---|---|
admin |
Full platform access, user management, admin dashboard |
designer |
Create projects, upload designs, generative tools |
collaborator |
View and comment on team projects |
manufacturing_expert |
View, comment, and access generative design tools |
- Define material constraints, weight targets, and cost limits
- AI generates multiple design variants scored by feasibility and performance
- Filter and compare variants side by side
- Live user management — view all users and change roles
- Platform-wide stats dashboard
Frontend
| React 19 | Latest concurrent rendering |
| TanStack Start 1.167 | Full-stack React meta-framework |
| TanStack Router | Type-safe file-based routing with code splitting |
| TanStack Query v5 | Server state, caching, realtime invalidation |
| TypeScript 5.8 | Strict end-to-end type safety |
UI & Styling
| Tailwind CSS v4 | Utility-first, zero-runtime CSS |
| shadcn/ui | Headless Radix UI components, fully customizable |
| Lucide React | Consistent icon system |
| Sonner | Toast notifications |
| Custom glass morphism | Design system with CSS variables |
3D & Visualization
| Three.js r184 | WebGL 3D engine |
| React Three Fiber 9 | Declarative Three.js for React |
| @react-three/drei 10 | OrbitControls, Stage, GLTF loader, Environment |
Backend & Database
| Supabase Postgres | Managed relational DB with REST API |
| Row Level Security | Policy-based data access per role |
| Supabase Realtime | Live comments, notifications, presence via WebSockets |
| Supabase Storage | CDN-backed file storage for covers and 3D assets |
| Postgres Triggers | Auto notifications on comment and project events |
Auth
| Supabase Auth | Email/password with JWT sessions |
| Custom role system | admin, designer, collaborator, manufacturing_expert |
| Route guards | Client + server enforcement per route |
Infrastructure
| Cloudflare Workers | Edge-deployed, globally distributed |
| Vite 7 | Lightning fast dev server and build |
| @cloudflare/vite-plugin | Workers-native Vite integration |
src/
├── routes/
│ ├── index.tsx # Landing page
│ ├── login.tsx # Authentication
│ ├── register.tsx # Sign up
│ ├── dashboard.tsx # Main dashboard
│ ├── workspace.tsx # Project workspace + comments
│ ├── viewer.tsx # 3D viewer (split panel)
│ ├── viewer.$projectId.tsx # Full-screen 3D viewer
│ ├── projects.new.tsx # Create project
│ ├── generate.tsx # Generative design
│ ├── admin.tsx # Admin dashboard
│ └── admin.users.tsx # User management
├── components/
│ ├── AppShell.tsx # Layout wrapper
│ ├── AppSidebar.tsx # Navigation sidebar
│ ├── Topbar.tsx # Header + notifications
│ ├── RequireAuth.tsx # Auth guard
│ └── ProtectedRoute.tsx # Role guard
├── hooks/
│ ├── useComments.ts # Comments + realtime
│ └── useNotifications.ts # Notifications + realtime
├── lib/
│ ├── auth.tsx # Auth context + provider
│ └── permissions.ts # Role-based permissions
└── integrations/supabase/
├── client.ts # Client-side Supabase
├── client.server.ts # Server-side Supabase
└── auth-middleware.ts # Bearer token middleware
5 tables with Row Level Security enabled on all:
profiles — user roles and metadata
projects — design projects with versioning
comments — version-scoped project feedback
collaboration_sessions — live presence tracking
notifications — real-time activity alerts
Storage bucket project-assets with scoped policies for covers/ and designs/ paths.
# Clone
git clone https://github.com/Zabi-01/legacy-ar.git
cd legacy-ar
# Install
bun install
# Environment
cp .env.example .env
# Add your VITE_SUPABASE_URL and VITE_SUPABASE_PUBLISHABLE_KEY
# Dev
bun run devRequires a Supabase project with the schema applied and a
project-assetsstorage bucket created.
Deployed on Cloudflare Workers via the @cloudflare/vite-plugin.
bun run build
# Deploy via Cloudflare dashboard or wrangler→ Live at legacy-v01.heellloo87.workers.dev
v1.0.0 — May 2026
Initial release. Core platform complete.
Planned for v2:
- Real AI generative design integration
- AR model overlay via WebXR
- Export to manufacturing formats (STEP, STL)
- Granular per-project permissions
- Password reset flow
